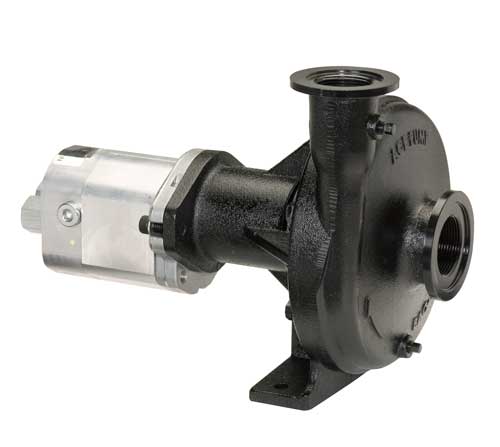

Hydraulic Driven Centrifugal Pumps

Centrifugal pump design provides good resistance to abrasive solutions and extra flow for agitation. The advantages of the hydraulic motor driven pump are mounting versatility, customized performance, and ease of maintenance. All hydraulic driven pumps are equipped with a stainless steel shaft and wear ring for excellent corrosion resistance.

MOUNTING VERSATILITY: The location of the pump is not tied to the PTO or engine drive shaft; the pump can be mounted in a variety of locations to suit application requirements.

CUSTOMIZED PERFORMANCE: The performance is dependent on the supply of hydraulic oil to the motor and not necessarily tied to engine speed. A hydraulic driven pump can produce higher pressures than PTO or belt driven pumps. They can also hold constant pressure at varying engine speeds on closed center hydraulic systems.

EASY MAINTENANCE: On a hydraulic driven pump there are no belts to align or break. Separate pump and hydraulic motor shafts simplify repair and replacement. Two main pump bearings support shaft loads. All pumps are equipped with easily replaceable Viton® mechanical seals.



  • 4000 PSI high efficiency pressure plated gear motor provides higher output with less oil flow
  • Splined motor to pump shaft connection strengthens the power train while allowing for easy repair and maintenance
  • Oversized bearings for extended pump life
  • Durable E-Coat finish provides extra corrosion resistance on all surfaces inside and out
  • F model equipped with NPT ports and industry standard flanged connections
  • Modified impeller design develops higher pressure at lower RPM
  • The M16 motor requires 14 GPM (53 LPM) maximum hydraulic fluid input
  • Recommended for:
    -Pressure Compensating Closed Center Systems
    -Load Sensing Closed Center Systems
    -Open Center Systems up to 14 GPM (53 LPM)
  • Maximum Pressure: 160 PSI (11 BAR)
  • Maximum Flow: 170 GPM (643.5 LPM)
  • Suction: 220 Flange
  • Discharge: 200 Flange
